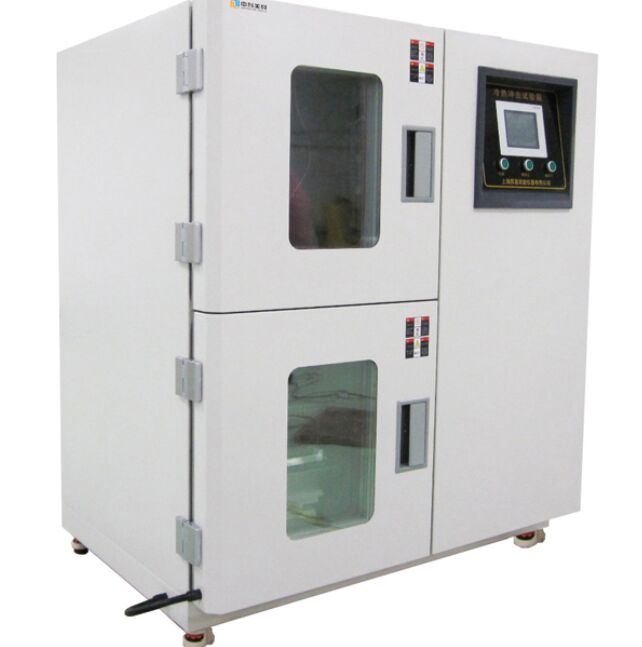

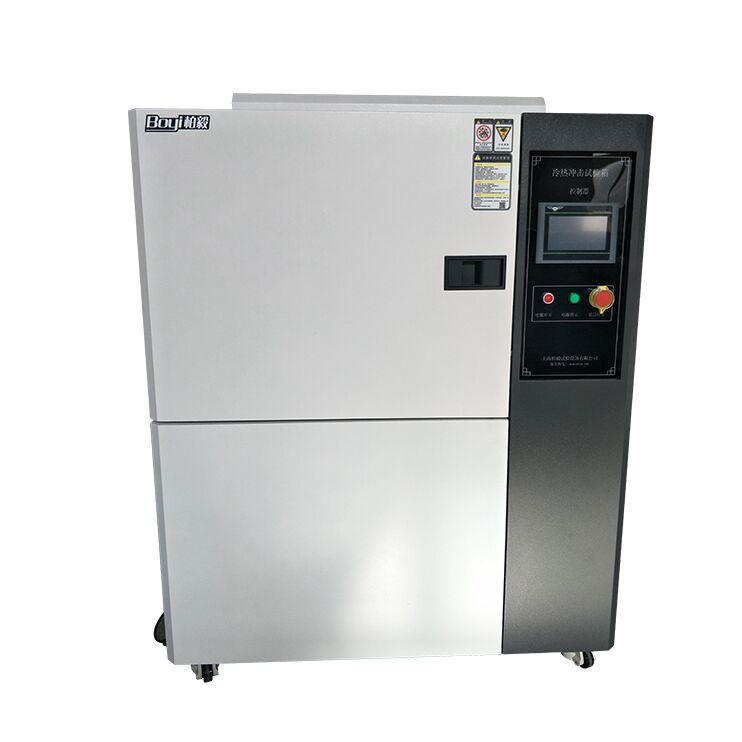

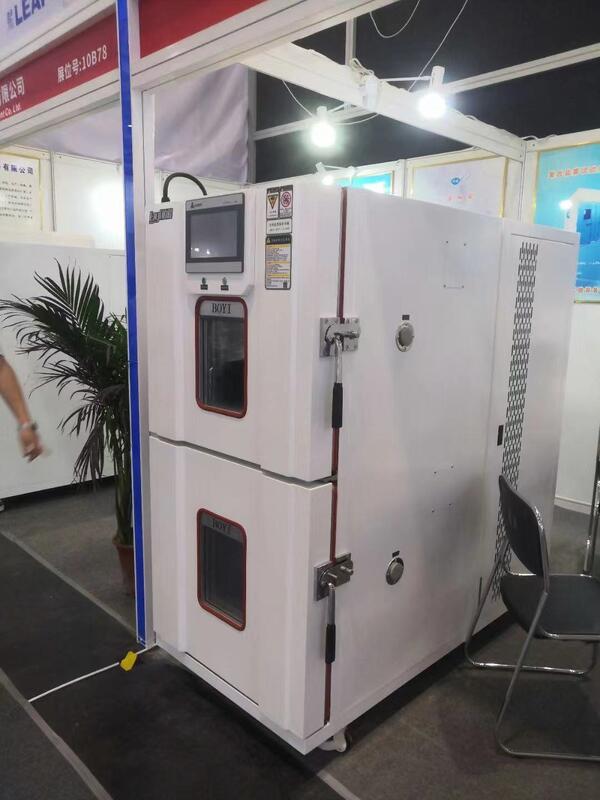

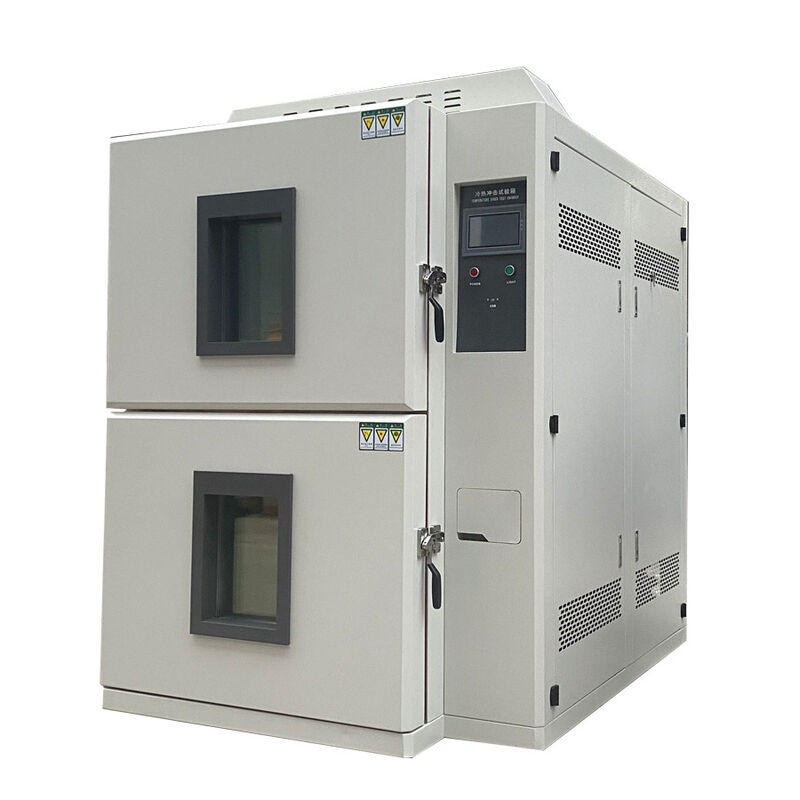

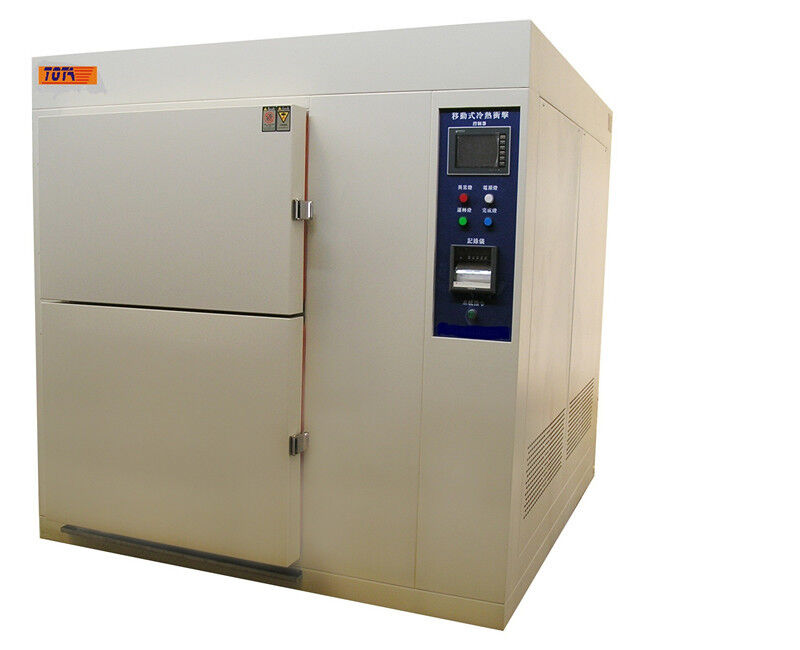

Two box- type hot and cold impact chamber or temperature schock chamber
Product Usage:
The temperature impact test chamber is mainly used for reliability testing of electrical and electronic products, components, parts, and metal materials. It supports a range of test conditions, including high and low temperature constant tests, as well as various temperature impact and temperature change tests.
Discription:
The thermal shock test chamber is essential for industries such as metal, plastics, rubber, and electronics. It is used to test the endurance of materials or composite structures under extreme temperature transitions. By rapidly exposing specimens to alternating high and low temperatures, it efficiently identifies chemical changes or physical damage caused by thermal expansion and contraction.
Features:
1.Highly accurate temperature recovery
2.1000 cycles continuous operation (option: defrost-free operation)
3.Accurate and dependable test result (option: product temperature control*)
4.Monitoring product temperature (option: product temperature monitor with trigger function)
5.patent parallel refrigeration system improves reliability
6.Automatic setting of pre-cooling and pre-heating in energy saving, Eco operation mode
7.Minimizing defrosting burden with defrost-free operation (option: defrost-free operation)
8.Parallel refrigerator control system for energy-saving control
Technical indicators:
| Product name |
Two box type temperature impact test box |
| Product model |
BT-2TS100 |
BT-2TS180 |
BT-2TS300 |
BT-2TS1000 |
| Nominal volume |
Unit/L |
100 |
180 |
300 |
1000 |
| Inner size |
Width × depth × height (mm) |
500×500×400 |
600×600×500 |
700×700×600 |
1000×1000×1000 |
| External size |
Width × depth × height (mm) |
1020×1200×1850 |
1200×1500×1900 |
1350×1600×1980 |
2450×1800×1980 |
| Basket size |
Width × depth × height (mm) |
350×350×250 |
450×450×350 |
550×550×450 |
800×800×800 |
| Operating mode |
A.vertical basket B. horizontal basket type |
|
Performance
index
|
temperature range |
A,-75℃~200℃ B,-90℃~200℃ C,-120℃~200℃ |
| Impact range |
A,-55℃~160℃ B,-75℃~160℃ C,-85℃~160℃ |
| Temperature fluctuation |
±0.5℃ |
| Temperature uniformity |
≤±2.0℃ |
| Temperature deviation |
≤±2.0℃ |
| heating rate |
RT~+200℃,≤40Min |
| Cooling rate |
A,+25℃~-75℃,≤60Min;B,+25℃~-90℃,≤80Min;C,+25℃~-90℃,≤100Min; |
| Temperature conversion time |
≤15s |
| Temperature recovery time |
≤5Min |
| Exposure conditions |
High temperature exposure 30Mins; Low temperature exposure 30Mins |
| Refrigeration method |
Compressor refrigeration |
| Cooling method |
Air-cooled/water-cooled |
| Main components |
Control System |
Siemens programmable controller + touch screen + independent development program |
| Heating system |
Fully independent system, high efficiency stainless steel finned tube heater |
| Cooling System |
Importer-type scroll compressor |
| Circulatory system |
Temperature and low noise motor, stainless steel centrifugal impeller |
| Main materials |
Carton material |
High-quality carbon steel plate, phosphating electrostatic spray treatment |
| Inner box material |
International standard SUS304# stainless steel mirror treatment |
| Insulation material |
Hard flame retardant polyurethane foam |
| Sealing material |
High and low temperature environment-friendly silicone rubber seal |
| voltage |
380±10% VAC,50Hz;3L+N+G |
| Communication Interface |
RS232 communication interface, USB data interface |
| Standard configuration |
1 sample holder, 1 test lead hole, 1 silicone plug |
| Optional accessories |
Recorder, Remote Control Software, Insulated Sample Holder, Split Manipulator, Dry Air Purge |
| safety devices |
Leakage, short circuit, motor overheating, heater overheating, humidification, water shortage, compressor overpressure, overload, multiple overtemperature protection |
| Environmental requirements |
Ambient temperature: 5 ~ 35 °C, relative humidity: ≤ 85% RH, no strong vibration, electromagnetic radiation, dust and corrosive substances around;
Water supply temperature: ≤ 30 °C, water pressure: 0.1 ~ 0.3MPa, water quality meets industrial water standards;
|
|
Note:
1. temperature performance parameters are in the ambient temperature of 25 °C, studio no load conditions, in accordance with GB/T5170.2-2008 test;
2.according to the specific requirements of users customized non-standard high and low temperature impact test box;
3.This technical information is subject to change without notice.
|
Details:
FAQ:

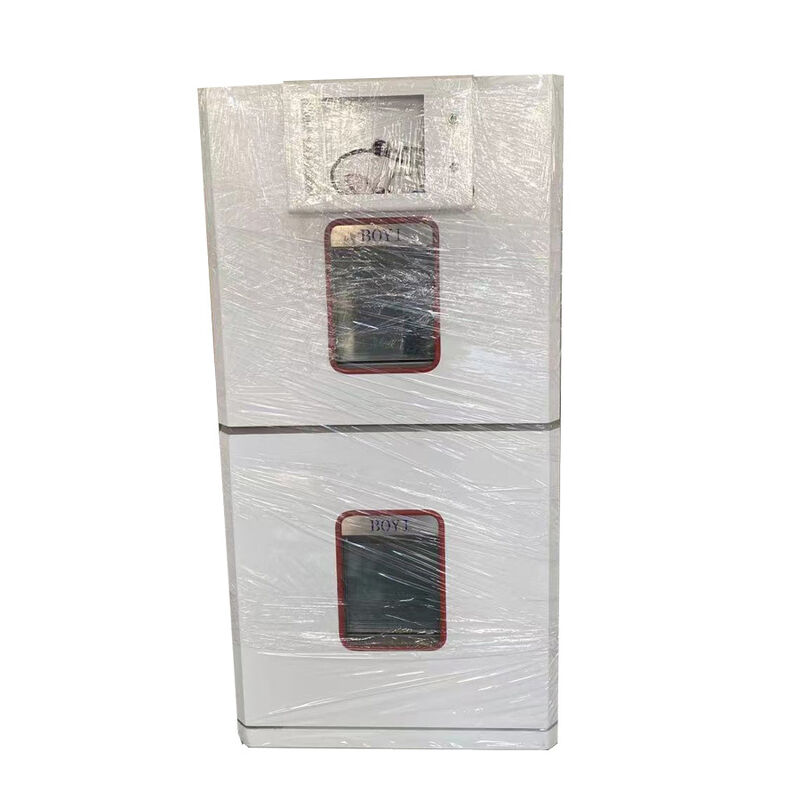

1. How about packaging? If machine damaged, what should I do ?Usually machine is packed with wooden case and standard export carton, plywood carton or as your requirement. Damage haven't happened before, if happen, we will arrange replacement.
